Product Description

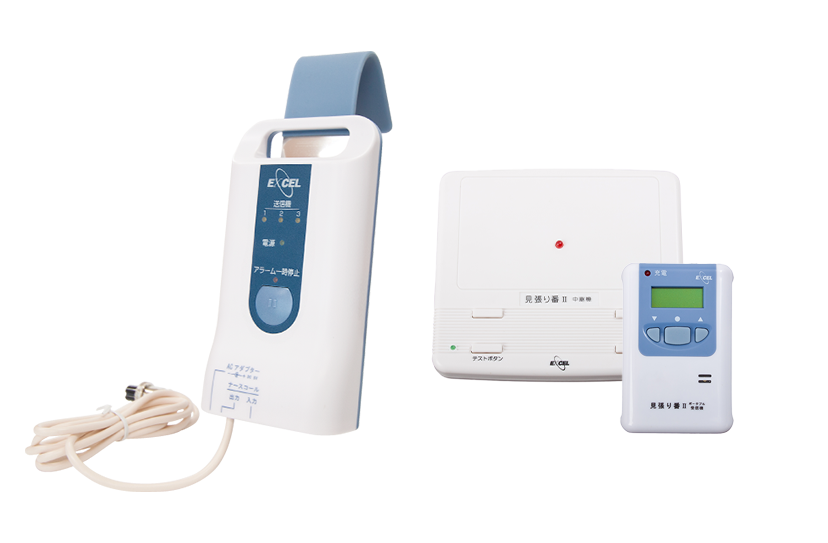

Wireless Nurse Call System
①Excel Engineering’s various detection sensors can be connected to the existing nurse call system wirelessly.
②Detection and/or nurse call request signals can be transmitted to the base and/or the portable receivers.
Features
Wireless Nurse Call System
By using the wireless adapter box, it is possible to link with the existing nurse call wirelessly.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/無線分岐box反応_Moment-1024x576.jpg)
Connected to the Base Receiver or Portable Receiver
Detection signals or a nurse call request will be sent to the Receiver via the Repeaters wirelessly
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000PRX-1024x769.jpg)
Multiple Sensor Connections
You can use it in combination with various monitoring sensors. Efficient long-term care and reduce the burden of long-term care for staff.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/List_of_sensors-1024x741.png)
Model
Wireless Adapter Box
●Equipment required to connect to an existing nurse call system.
Please see here for details.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/nc5000NRX.png)
Nurse Call Button
This is a small nurse call button
Product Number | NC-5000TXPB |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/06_見張り番Ⅱコールボタン_9347-1024x769.jpg)
Mini transmitter
This mini transmitter can be used for the bed sensor or the bed sensor or the floor sensor. The delayed alert timer can be set at 0,1,2, or 4 seconds.
Product Number | NC-5000TXBF |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000TXBF-836x1024.jpg)
Portable Receiver
●A caregiver can be alerted by an “alert” sound or vibration
●Up to 63 different detection sensors and/or communication devices can be connected to this portable receiver.
●Multiple portable receivers can be used simultaneously
●When the transmitter’s battery becomes low, the LED light starts flashing.
Product Number | NC-5000PRX2 |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000PRX-1024x769.jpg)
Base Station Receiver
●A caregiver can be alerted by “alert” lights, sound, or melodies.
●Up to 16 different detection sensors and/or communication devices can be connected to this receiver.
●Multiple receivers can be used simultaneously
●When the transmitter’s battery becomes low the LED light starts flashing.
Product Number | NC-5000RX(C) |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000RX-1024x683.jpg)
Wireless Repeater
●This repeater increases the wireless network coverage area
●By connecting multiple repeaters, it is possible to cover the wireless network in an entire facility
●The wireless coverage can be identified by pressing the test button
Product Number | NC-5000RP (C) |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000RP-1024x683.jpg)
Portable Pause Button Box for the Wireless Adapter Box
This is a portable pause button box for the wireless adapter. By using the device, false activation of the nurse call system can be prevented.
Product Number | NC-5000TXPH |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000TXPH-1024x769.jpg)
Mini Repeater
●This repeater increases the wireless network coverage area
●By connecting multiple repeaters, it is possible to cover the wireless network in an entire facility.
●To use the repeater, simply plug it in to an electrical outlet
Product Number | NC-5000RP2 |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/NC5000RP2-1024x691.jpg)
Sensors
*Click the image to jump to the product page of each sensor
Specification
Name of Product | Base Station Receiver | Portable Receiver | Call Button | Mini Transmitter | Repeater | Mini Repeater |
Product Number | NC-5000RX(C) | NC-5000PRX2 | NC-5000TXPB | NC-5000TXBF | NC-5000RP(C) | NC-5000RP2 |
Dimensions(mm) | 160×140×30 | 60×91×20 | 50×85×18 | 41×69×9 | 160×140×30 | 77×86×37 |
Weight(g) | 252 | 68 | 56 | 23 | 240 | 90 |
Materials | Housing:ABS | Housing:ABS | Housing:ABS | Housing:ABS | Housing:ABS | Housing:ABS |
Power | AC Adapter (DC9V/200mA) | AC Adapter (DC6V/300mA) /lithium ion Polymer rechargeable battery | 2 AA batteries | Coin cell battery CR2032 (3V) 1 piece | AC Adapter (DC9V/200mA) | Connect directly to an outlet |
