Product Description

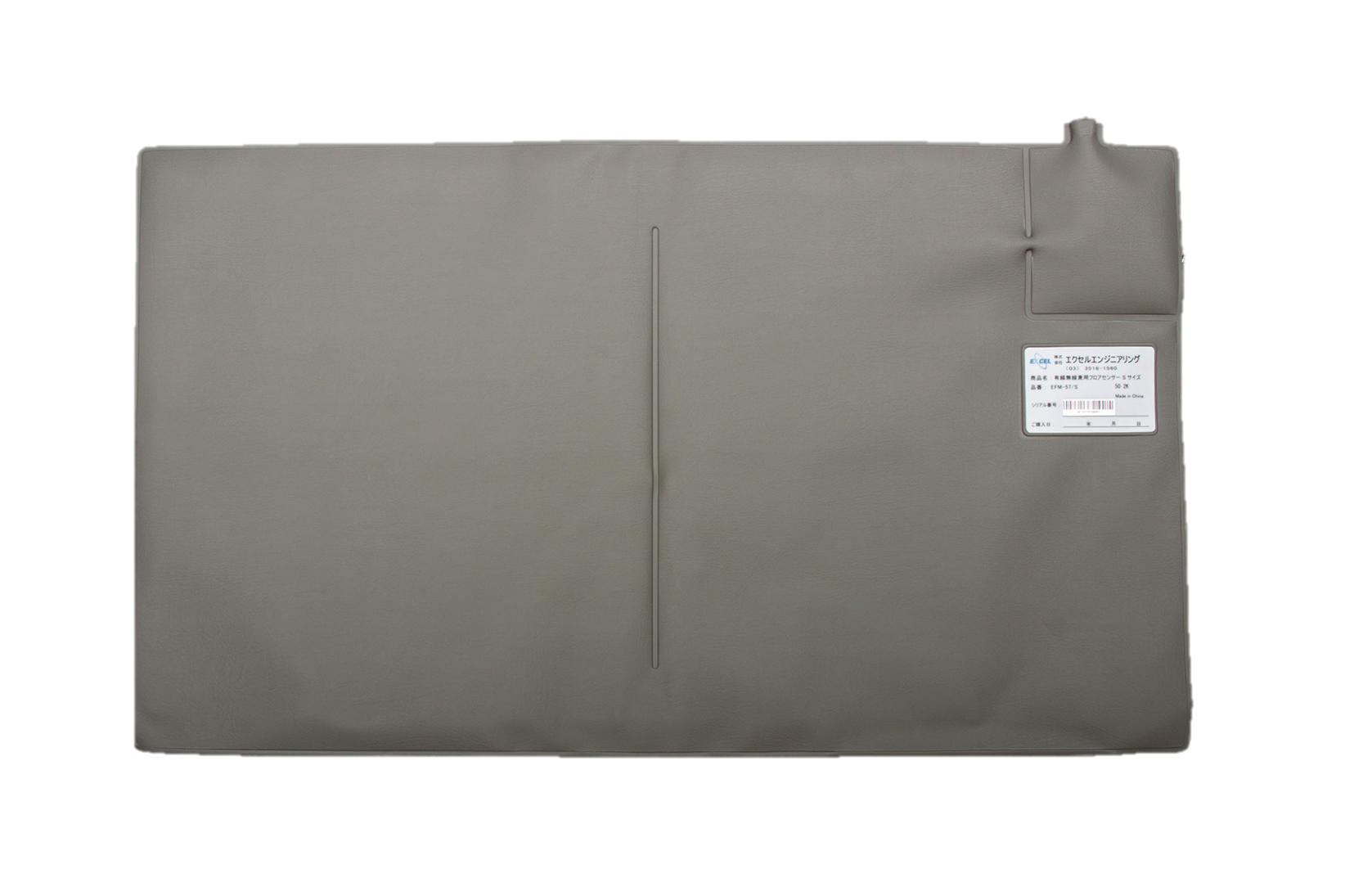

When an individual steps on the sensor pad, it detects!
●This sensor pad alerts when an individual’s body weight creates a pressure on the pad by the bed.
●The pad would be most appropriate for individuals who need to be monitored for the potential risk of falling or wandering.
Features
Available in 3 sizes, S, M, and L
You can choose the size according to the location and usage.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/Floor_size.png)
Wired nurse call connection
It is possible to connect to an existing nurse call.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/Floor_wired.png)
Wireless nurse call connection
It is possible to connect to an existing nurse call wirelessly.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/Floor_wireless.png)
Model
Floor Sensor only
Floor sensor + Nurse call connection cables
Size S | EFM-57/S-C |
Size M | EFM-57/M-C |
Size L | EFM-57/L-C |
Wired Floor Sensor & a Nurse Call Connection Package
Floor Sensor + Adapter box + Nurse call connection cables
Size S | EFMS-57/S |
Size M | EFMS-57/M |
Size L | EFMS-57/L |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/有線ナースコール接続セット-1024x576-1.jpg)
Wireless Floor Sensor & NC5000 Package
Floor sensor + Wireless adapter box + Mini transmitter
Size S | SNC5000F-57/S |
Size M | SNC5000F-57/M |
Size L | SNC5000F-57/L |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/フロアセンサー無線セット-1024x576.jpg)
Specifcation
Name of Product | Floor Sensor Size S | Floor Sensor Size M | Floor Sensor Size L |
Product Number | EFM-57/S-C | EFM-57/M-C | EFM-57/L-C |
Dimensions(mm) | 800x450x4.5 | 900x600x4.5 | 1200x600x4.5 |
Weight(g) | 800 | 1200 | 1800 |
Materials | PVC | PVC | PVC |
Sensor Detection Load | 2kg/15c㎡ | 2kg/15c㎡ | 2kg/15c㎡ |
Power | 3.5Φ monaural plug 2P metal connector 4/4 modular plug | 3.5Φ monaural plug 2P metal connector 4/4 modular plug | 3.5Φ monaural plug 2P metal connector 4/4 modular plug |
Cable Length(mm) | 2500 | 2500 | 2500 |
