Nursing Care Products

Bed Sensor

For help prevent an individual from falling off the bed.

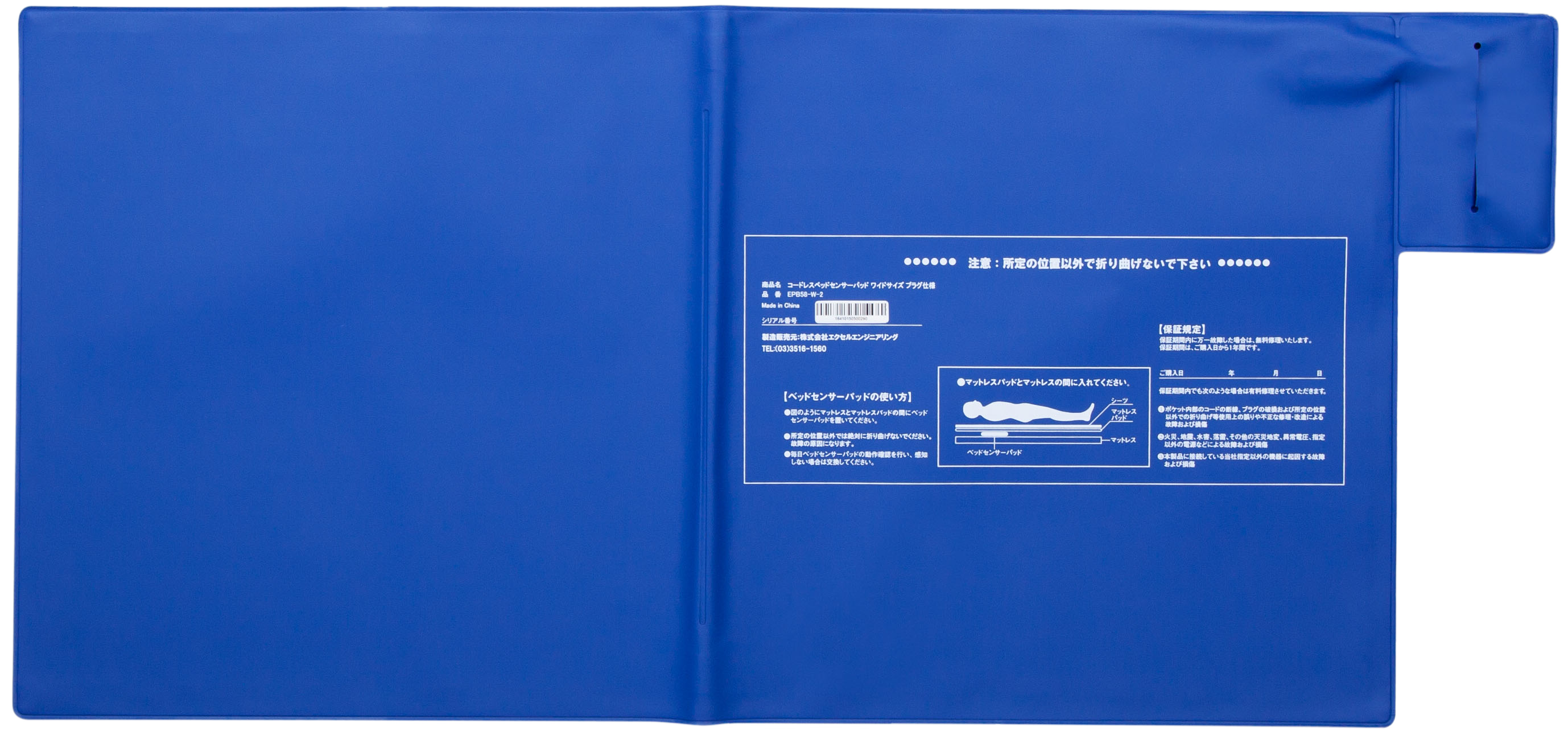

Bed Sensor

Product Description

When an individual attempts to get up, it detects!

●The sensor is designed to help prevent an individual from falling off the bed.

●Based on an individual’s needs, a location of the sensor is selected. When an individual attempts to get up or the body moves too close to the edge of the bed, the sensor alerts.

Features

Wired nurse call connection

By using EXC-05, it is possible to link with an existing nurse call system by wire.
.

Wireless nurse call connection

By using the wireless adapter box, it is possible to wirelessly link to an existing nurse call.

Model

Wired Bed Sensor

Bed sensot+EXC-05 +NC cable+ Adapter box

Product NameProduct No.
Size Wide
EPB54-W-1
EXC-05&Bed Sensor
EXC05S-5W
*Please specify the model number of the adapter box.

Wireless Bed Sensor

Wireless bed sensor+ Mini transmitter+ Wireless adapter box

Product Name Product No.
Wireless Bed SensorEPB58-W-2
NC-5000&Wireless Bed Sensor PackageSNC5000B-58W
*Please specify the model number of the wireless adapter box.

Affordable Sensor Pad

Affordable Sensor Pad only

Types of PlugsProduct No.
Modular PlugEPB90-W
Mini PlugEPB90-W/MP
RCA Plug EPB90-W/RCA
*The duration of warranty on these products is 90 days from purchase; however, they can be used longer. They are not intended to be used for multiple care recipients.

Specification

Name of ProductWired Bed Sensor Wireless Bed Sensor
Product Number EPB54-W-1 EPB58-W-2
Dimensions(mm)767x390x6.5850x390x1.5
Weight(g)540500
MaterialsPVCPVC
Power4/4 modular plug3.5Φ monaural plug
Cable Length (mm)2000

Q&A

Where should I put the bed sensor?

Put the sensor pad under the sheets or pads and place it under care recipient’s back.

I feel that the response of the sensor is slow. Is it possible to set the time for notification?

In the case of the wireless type, it can be set on the transmitter side. While, in the case of the wired type, it can be set in EXC-05. You can choose from 0, 1, 2, and 4 seconds.
We set it to 2 seconds when shipping from us.
