EXCEL ENGINEERING CO.,Ltd.

Nursing Care Products

Disposable Diaper Sensor

When the sensor gets wet due to urination, it sends a signal.
Disposable Diaper Sensor

Product Description

Detects wet diapers!

The sensor alerts when the sensor gets wet! This will help a caregiver to know when to change the diaper.

This sensor can be connected to an existing nurse call system wirelessly via NC-5000.

Features

Wireless nurse call connection

By using the wireless adapter box, it is possible to wirelessly link to an existing nurse call.
It can be used as a sensor for Lookout II.

Model

Sensor Tapes(WCT)

The sensor tape is placed inside of the diaper.
The tape consists of three layers (garment/aluminum/garment). This makes a user more comfortable when he or she wears the diaper.

Product Number100 pieces WCT100
Product Number400 pieces WCT400
65×410mm
*This is a one-time- use disposable tape.

Sensor Tape Built-in Pads (WCT)

This built-in sensor tape pad absorbs moisture. There are 30 pads in this item.

Product NumberWCT530
210×490mm
Absorbable capacity:500ml
*This is a one-time-use disposable tape.



.

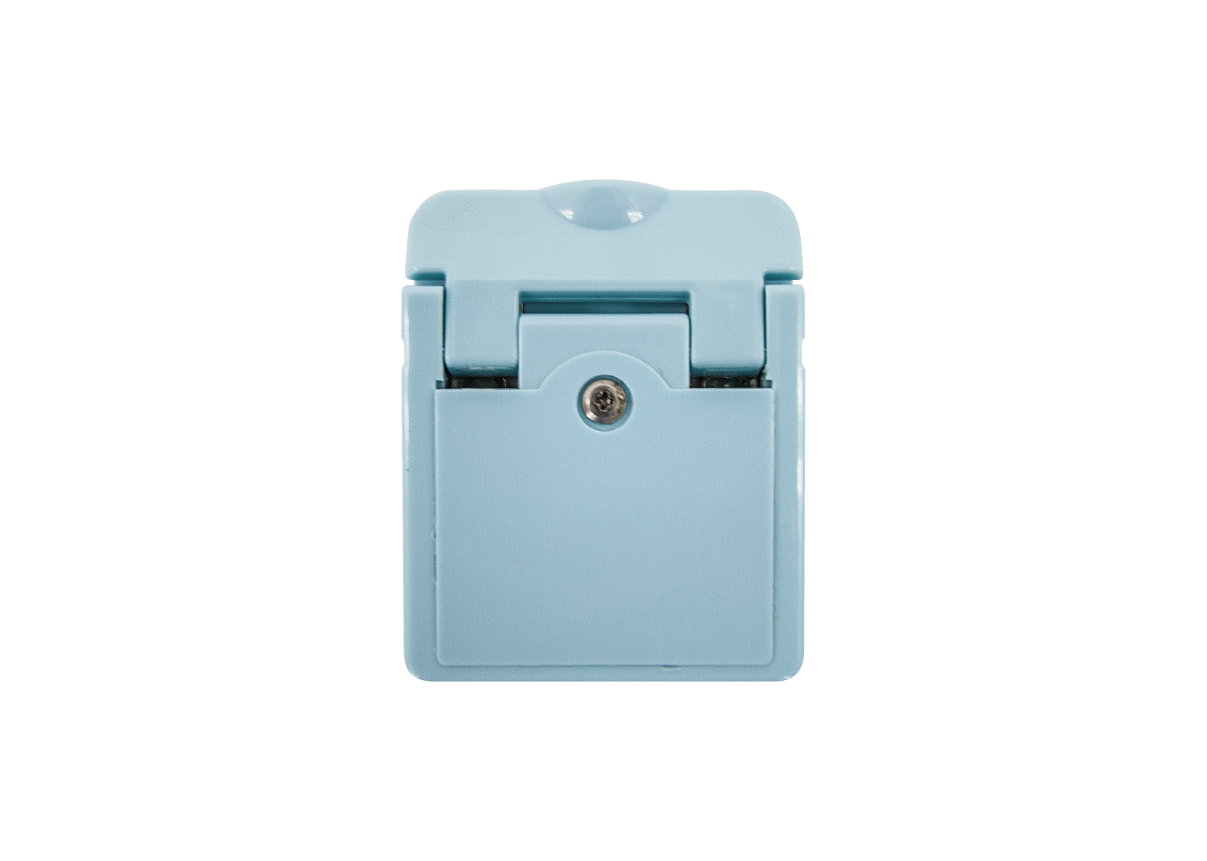

Diaper Sensor Transmitter (NC-5000TXWA)

The transmitter can send a detection signal wirelessly to a receiver.

Product NumberNC-5000TXWA


.

Specification

Name of ProductDiaper Sensor Transmitter
Product NumberNC-5000TXWA
Dimensions(mm)43x53x13
Weight(g)29
MaterialsHousing:ABS
Power1 coin-type battery CR2032
