Product Description
When an individual tries to get up, it detects!
Falling accidents typically occur an individual tries to get up from a wheelchair.
This sensor pad is designed to use with a wheelchair.
Features
Wireless nurse call connection
Use the wireless adapter box to connect to the nurse call wirelessly and use it.。
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/wheelchair-sensor-pad_NC5000-package-package.png)
Alert an individual right there
The wheelchair sensor pad can be connected to EXC-05. The melody/buzzer sound stops when the individual sits back down.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/wheelchair-sensor-pad_EXC05-package.png)
Alert to Portable receiver
Notifies the portable receiver of NC-9000 using the long-distance communication LoRa.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/wheelchair-sensor-pad-with-portable-wireless-transmitter-and-receiver.png)
Monitor by smartphone
By using it together with iBaby, you can notify your smartphone and check it on the video.
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2022/01/wheelchair-sensor-pad-with-ibaby-care-S.png)
Model

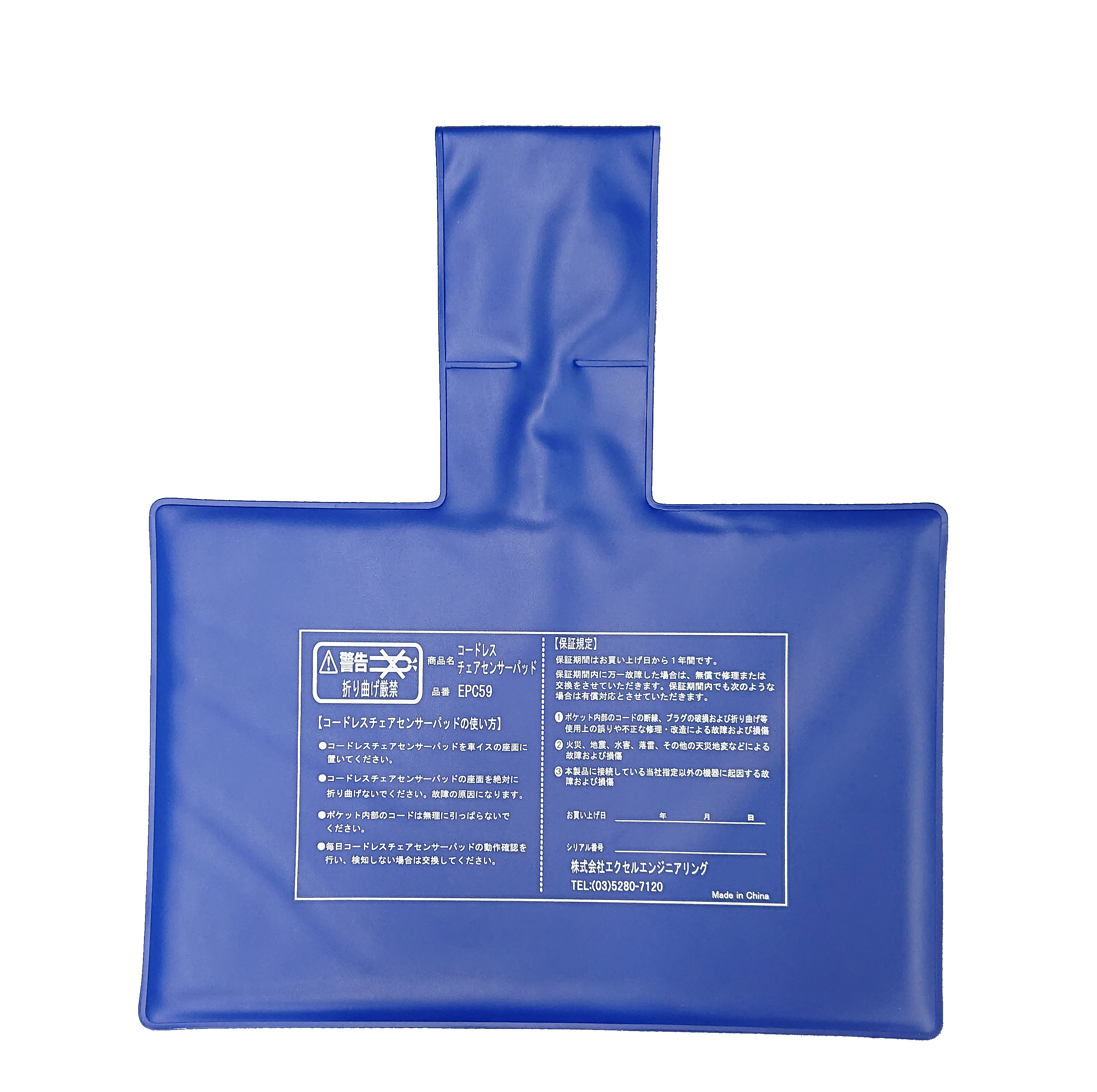

Wireless Wheelchair Sensor Pad
Wireless Wheelchair Sensor Pad
Product Number | EPC59 |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/EPC59-1-1024x1019.png)
Wheelchair Sensor Pad
Wheelchair Sensor Pad
Product Number | EPC53 |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/チェアセンサー-1024x587.png)
Wheelchair Sensor Pad&NC5000 Package
Wireless Wheelchair Sensor Pad+Mini transmitter+Wireless Adapter Box
Product Number | SNC5000C-59C |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/チェアセンサー見張り番IINCセット-1024x576.jpg)
Wheelchair Sensor Pad&EXC-05 Package
Wheelchair Sensor Pad+EXC-05
Product Number | EXC05S-5C |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/チェアセンサーマイメロディーSセット-1024x576.jpg)
Wheelchair Sensor Pad with Portable Wireless Transmitter and Receiver
Wireless Wheelchair Sensor Pad+NC-9000 transmitter+Portable Receiver
Model No. | SC9000-P |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/チェアセンサー見張り番III携帯タイプ-1024x576.jpg)
Wheelchair Sensor Pad with iBaby Care S
Wireless wheelchair sensor pad+iBaby Care S+NC-9000 transmitter
Model No. | SC7000-S |
![](https://eng.excel-jpn.com/cms/wp-content/uploads/2021/10/アイベビーケアSチェアセンサー-1024x576.jpg)
Specification
Name of Product | Wireless wheelchair sensor pad | Wheelchair sensor pad |
Product Number | EPC59 | EPC53 |
Dimensions(mm) | 382x255x6.5 | 382x354x6.5 |
Weight(g) | 180 | 220 |
Materials | PVC | PVC |
Power | 3.5Φ monaural plug | 4/4 modular plug |
Cable Length(mm) | – | 750 |
